Quasar Mini 4-in-1 Bathroom Heater, Cooler and Exhaust Fan with Tricolour LED Light

One sleek ceiling unit. Heating, ventilation, cooling airflow and lighting.

The Quasar Mini 4-in-1 replaces separate bathroom fittings with a single low-profile unit. It combines a 2200W PTC heater, a 330m³/hr exhaust fan, a fan-only cooling mode and a 20W tricolour LED panel light. It’s an easy upgrade for a bathroom renovation, a new build or a straight swap of an older heat-fan-light.

Warm up fast, clear steam faster

• 2200W PTC heating gives quick warmth on cold mornings.
• 330m³/hr air extraction helps remove steam and moisture, which reduces fogged mirrors and the damp conditions that encourage mould.
• Quiet operation at ≤40dB, so it won’t dominate the room while it works.
• Fan-only cooling mode keeps air moving through the bathroom in warmer months.

Tricolour LED lighting for any mood or task
The built-in 20W LED panel light offers three colour temperatures:

• 3000K warm white (1200lm) for relaxing evening baths
• 4000K cool white (1190lm) for everyday use
• 5000K daylight (1180lm) for grooming and makeup

Designed for easy installation

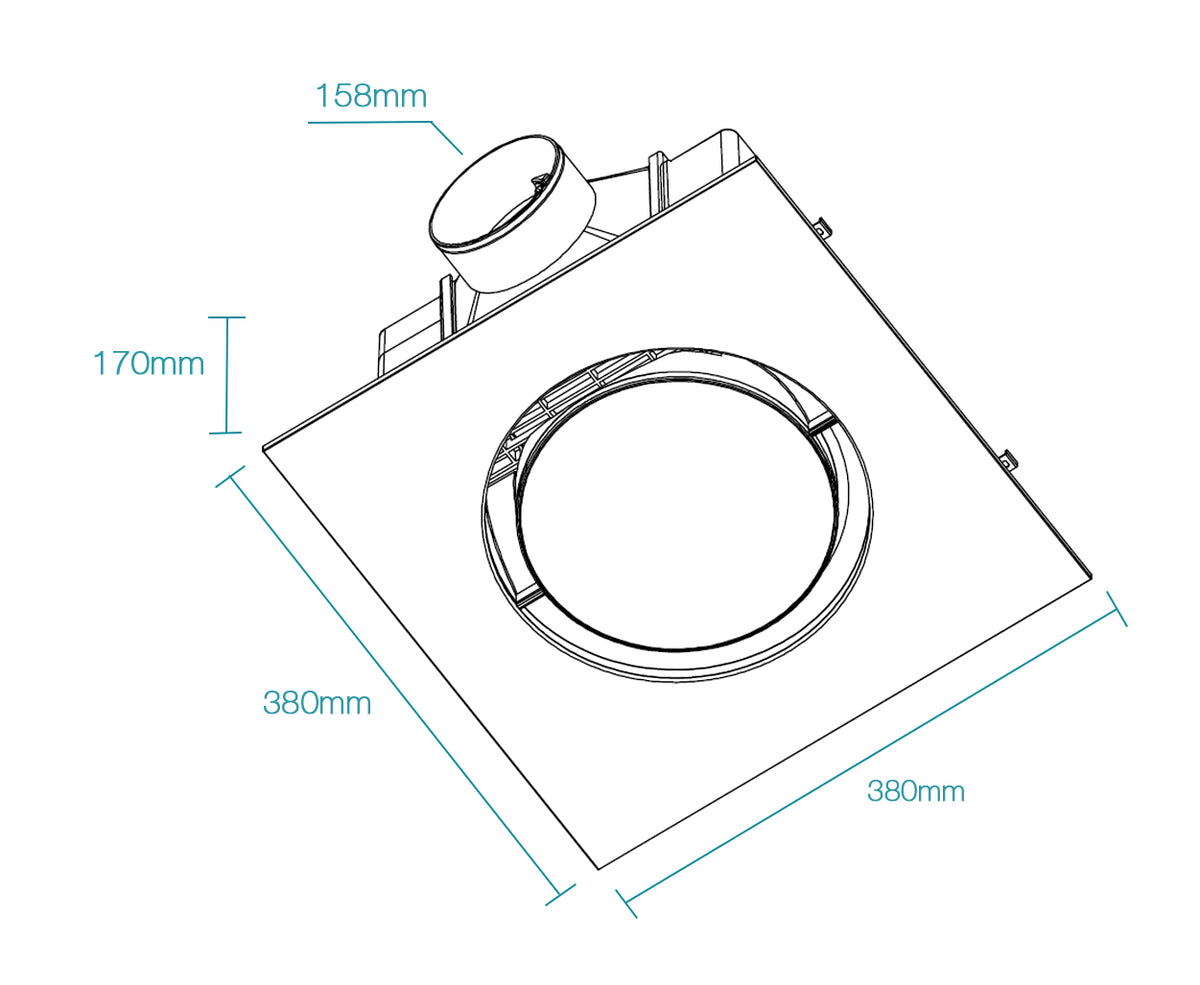

• The variable cutout runs from 330 x 330mm to 350 x 350mm, so it suits retro-fit jobs.
• A cut-out template is included.
• The minimum ceiling depth is 200mm.
• It has a 100mm ducting size.
• The kit includes a 1.5m duct, 2 ducting clips, an external grille and a 4 gang switch.
• A back draft stopper is included to help prevent outside air flowing back into the bathroom.

Built to suit a bathroom

• The polypropylene (PP) housing and polycarbonate (PC) fascia give a clean matt white finish.
• The unit is IPX4 rated for splash protection.
• Built-in thermal overload protection adds a layer of safety.
• It runs on 220–240V, 50Hz.

Optional upgrade: It’s compatible with the Martec Bathroom Remote (MBHPTKIT, sold separately).

Installation should be carried out by a licensed electrician in accordance with Australian wiring rules and local regulations.

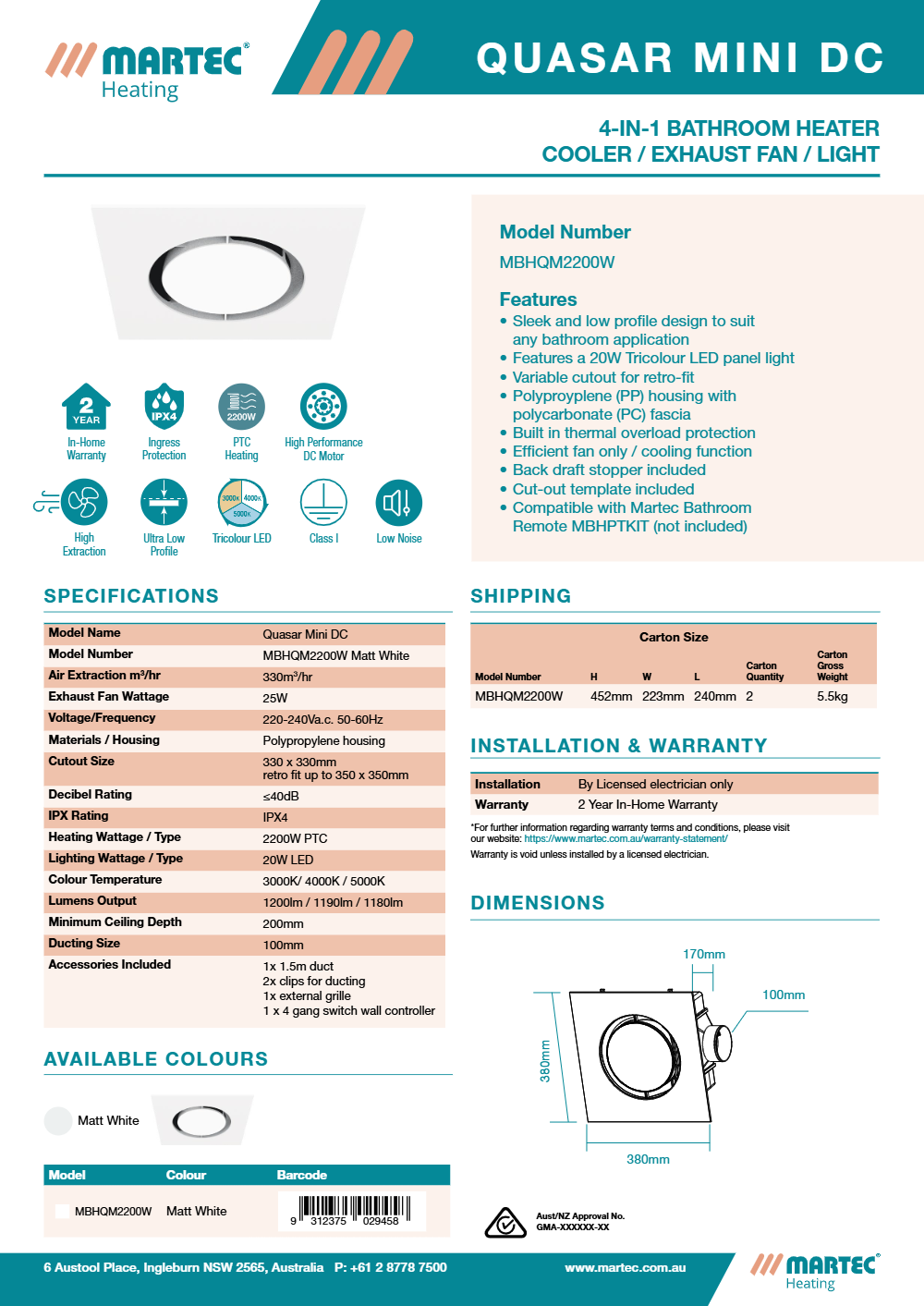

Specifications table

What does the Quasar Mini 4-in-1 do?
It combines a 2200W bathroom heater, a 330m³/hr exhaust fan, a fan-only cooling mode and a 20W tricolour LED light in one ceiling unit.

How powerful is the heater?
It uses a 2200W PTC heating element with built-in thermal overload protection.

Can I change the light colour?
Yes. The LED panel switches between 3000K warm white, 4000K cool white and 5000K daylight.

Will it fit my existing cutout?
The cutout is adjustable from 330 x 330mm to 350 x 350mm, and a template is included. You’ll need at least 200mm of ceiling depth.

Is it suitable for bathrooms?
It’s IPX4 rated for splash protection. Check your bathroom’s zone requirements with a licensed electrician before installing.

Does it come with ducting?
Yes. It includes a 1.5m duct, 2 duct clips and an external grille for 100mm ducting.

Is a remote available?
It’s compatible with the Martec Bathroom Remote MBHPTKIT, sold separately.
